Model: ICS-5630

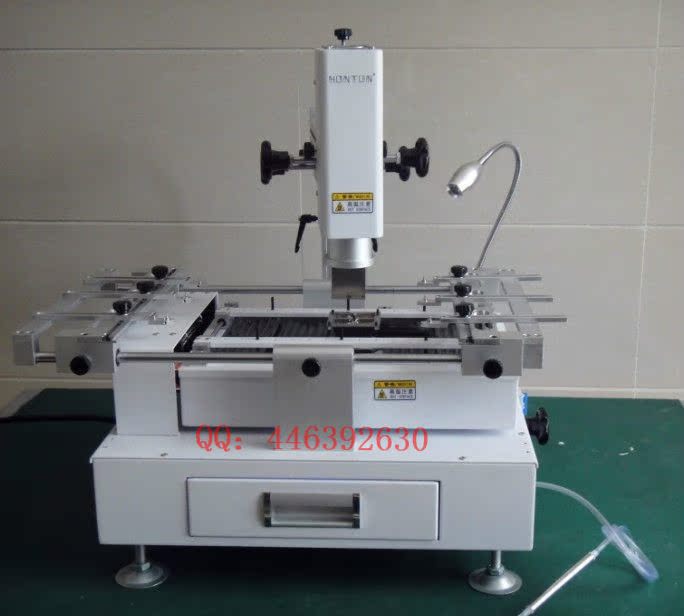

ICS-5630 three-zone Smart BGA rework station Features Description:

Basic parameters:

1 Power supply: single phase 220V AC 50/60HZ 4KVA

(2) Total Power: 40 00W
  Upper heating power: 8 00W
  bottom heating power: 800W, bottom infrared heating power : 2400W . Standby power: ≤ 10W

3 Temperature control: high-precision K -type thermocouple closed loop control, with electronic temperature compensation.

4.PCB positioning: V shaped slot + Z shaped fixture  double Y direction adjustment

5. adapt PCB size: MIN  10mm * 10mm  MAX  350mm * 400mm

6 . IR preheating area: 210mm * 340mm

7 Machine size: ( about ) Width 580mm * (front and rear) Length 430mm * height 650mm

8 Weight: Net weight 30KG

New features:

A : the world's most advanced "Intelligent Control System" ( Intelligent Control system ), referred to " ICS ", let BGARework Rework more humane, more simplified, more intelligent.

B : Super failure alarm function, the control system integrates the following fault detection and alarm function:

1 : K -type thermocouple open circuit detection and fault alarm protection. Allow the temperature control, temperature overshoot and other faults no longer occur.

2 : upper and lower hot air fan fault detection and fault alarm protection. Let the heater burnout become history, maximize the protection of machinery and personal safety.

3 : Heater fault detection and fault alarm, let the machine's real-time status at a glance.

C : upper and lower hot air volume electronic smart governor. Let each different temperature curves match different wind speeds, improve repair efficiency, improve the success rate of repair. Eliminating tedious repetitive conventional machines mechanical speed adjustment.

D : double Y direction PCB clamping bracket to meet larger PCB fixed.

Basic functions :
1. imported high-precision materials (PLC. heater ) precisely control BGA desoldering process .

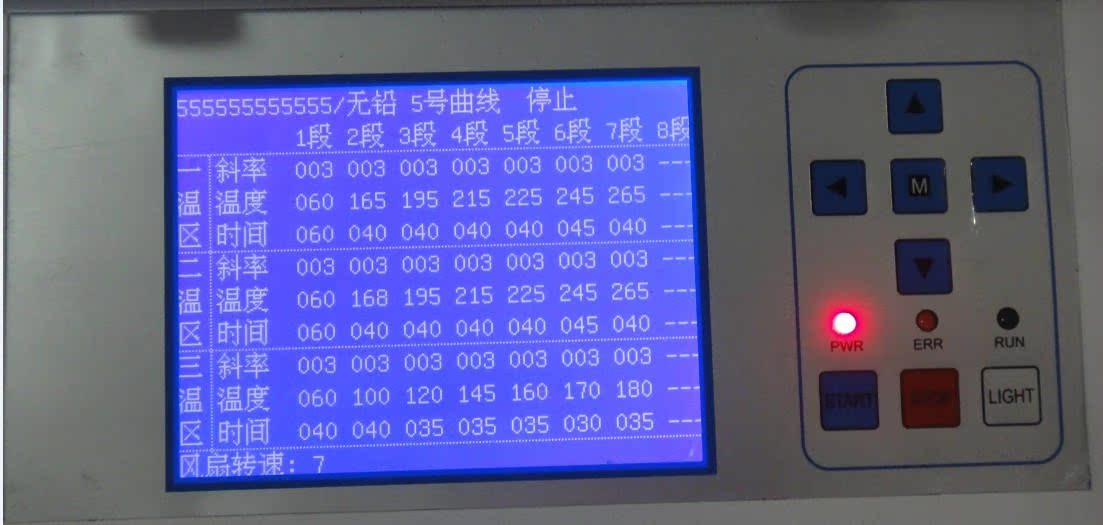

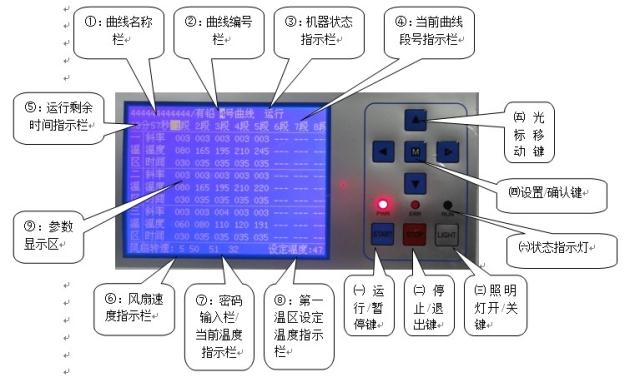

2. machine uses three independently controlled temperature zones , temperature control more accurate . first temperature zone . second temperature zone can set 8 paragraph liter ( drop ) temperature + 8 section temperature control , can store 10 groups temperature curve .  third zone using preheat , independent temperature control , ensure the welding process PCB board fully preheated ,
3. selection of imported high-precision thermocouples , realize the temperature of precision detection .
4. using the upper heating and bottom heating temperature curve way walk alone , cross-flow rapid cooling fan principle , ensure PCB in the welding process , will not be deformed .
5. desoldering and After welding advance 20 seconds progressive alarm function , with a vacuum suction pen , convenient desoldering suction trip after BGA.
6. PCB positioning using V -groove , flexible and convenient portable universal fixtures , for PCB play protective effect .
7 For large thermal capacity of PCB and other high temperature requirements , lead-free soldering and so can easily handle .
8 hot air nozzle can be 360 degree rotation , easy to replace . Equipped with various size hot air nozzle ,special requirements can be customized . For laptop motherboard, desktop computer motherboard, etc. Large circuit board maintenance, and mobile phone motherboard such as the maintenance of micro chips
